diesel
FIRE PUMPS

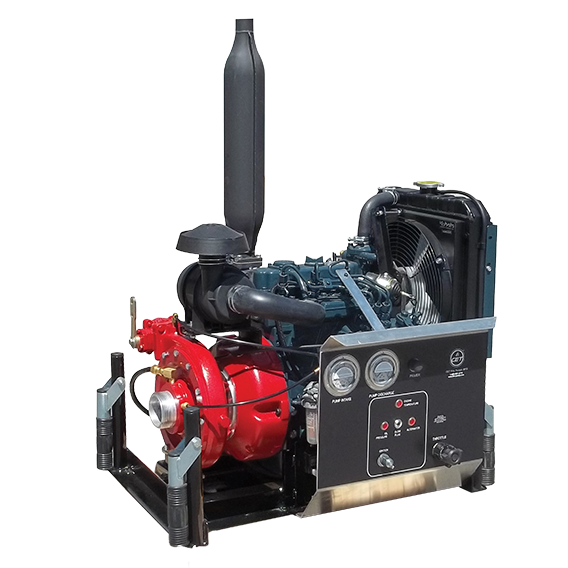

CET FIRE PUMPS | KUBOTA DIESEL POWERED PUMP

CET FIRE PUMPS | KUBOTA DIESEL POWERED PUMP

$20,122.00
$20,122.00
Shipping calculated at checkout.

DIESEL POWERED PUMP

The MR version gives you more pressure to meet the requirements of an initial attack.

ENGINE SPECIFICATIONS

  • D902 Kubota liquid cooled engine
  • 3-cylinder, 4-stroke diesel engine
  • Electric start
  • 6 gallon (22 l) detachable fuel tank
  • Alternator 12V - 40A

CONTROL PANEL

  • Engine start/stop button
  • Throttle control lever
  • Operating panel light
  • Pilot lights
  • Pressure gauge
  • Vacuum pressure gauge

PUMP UNIT SPECIFICATIONS

  • C.E.T. single stage centrifugal pump
  • Pump body made from high resistance aluminum alloy
  • Bronze impellers
  • Mechanical shaft seal
  • Stainless steel pump shaft
  • Electric priming system, guaranteed up to 20’ (6 meter) lift
  • One 1 1⁄2" (38mm) delivery outlet with Fire Type swing-out valve
  • One 2 1⁄2" (65mm) suction inlet
  • Dimensions: Length: 31'' (787 mm);
  • Width: 26'' (660 mm);
  • Height: 31-1/2'' (800 mm).
  • Wet weight: 360 lbs (163 kg)

PERFORMANCE

  • 315 GPM @ 10 PSI
  • 300 GPM @ 50 PSI
  • 230 GPM @ 100 PSI
  • 145 GPM @ 150 PSI
  • 105 GPM @ 175 PSI

Dimension: 31.5 x 26 x 31 Run Time: 255gpm / 175psi (max)
Other Features
  • D902 Kubota liquid cooled engine
  • 3-cylinder, 4-stroke diesel engine
  • C.E.T. single stage centrifugal pump
  • Pump body made from high resistance aluminum alloy
  • Bronze impellers
  • Mechanical shaft seal
  • Stainless steel pump shaft
  • Electric priming system, guaranteed up to 20’ (6 meter) lift
  • One 1 1⁄2" (38mm) delivery outlet with Fire Type swing-out valve
  • One 2 1⁄2" (65mm) suction inlet
Find a dealer
View full details

Product Specifications

The Kubota Diesel fire pump gives you more pressure to meet the requirements of an initial fire attack.
C.E.T. single stage centrifugal pump
Pump body made from high resistance aluminum alloy
Bronze impellers
Mechanical shaft seal
Stainless steel pump shaft
Electric priming system, guaranteed up to 20’ (6 meter) lift
One 1 1⁄2" (38mm) delivery outlet with Fire Type swing-out valve
One 2 1⁄2" (65mm) suction inlet

Download PDF

Data Sheet

Product Battery Powered Positive Pressure Power Blower
Power Source Diesel
Part No. PFP-25HPDSL-MR
Dimensions (inches) 31.5 x 26 x 31
Weight (lbs) 380
