Ultra-sensitive, contact-based monitor that alerts crews to dangerous micro-movement before collapse.
Product Snapshot

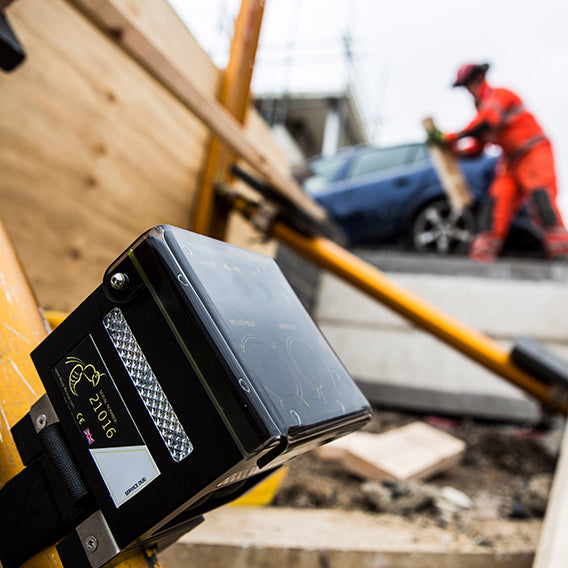

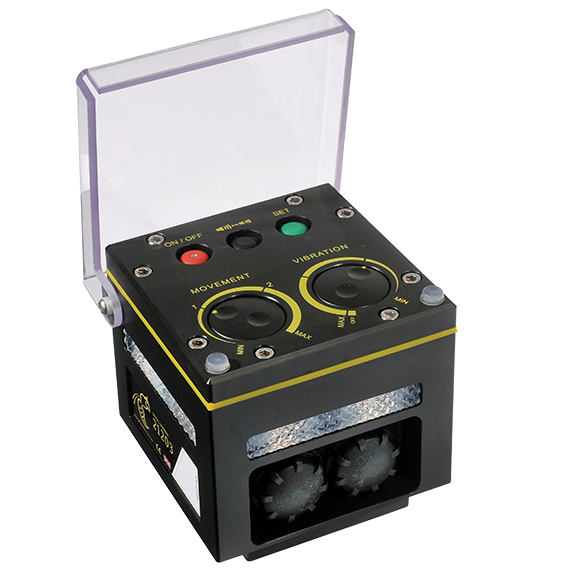

Developed with UK-ISAR, the WASP clamps, screws, or magnet-mounts to any surface in any orientation. Once armed, it measures structural rotation (0° - 2.6°) and vibration (0-100 Hz). When rotation exceeds the preset threshold, a 105 dB alarm and LED strobe to order an immediate withdrawal to safety.
Key performance
Spec
Value
Detection Range
0.05 ° rotation / < 1 mm deflection
Alarm Output
105 dB siren + red strobe
Mounting Kit
Brackets, magnets, clamps, no tools required
Power
9 V battery, 6 h continuous monitoring
Rating
IP55 weather-proof enclosure
Typical Deployments
Collapsed or fire-damaged structures
Trench and shoring movement tracking
Vehicle-into-building and heavy-rescue extrication
Typical DeploymentsCollapsed or fire damaged structuresTrench and shoring movement trackingVehicle into building and heavy rescue extricationPost earthquake interior breach operations
Product Details
IP55 Rated weather proof enclosure
Product Details
Includes a Mounting Kit with Brackets, magnets, clamps-no tools required
