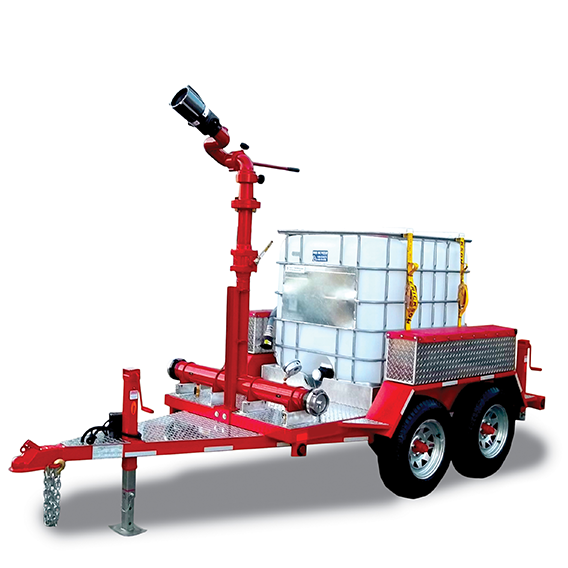

Our partner CET Fire Pumps manufacturers a variety of foam trailers from that transport between 150 to 2,000 gallons. These versatile trailers are ideal for use in Industrial, commercial, municipal and forestry environments. Foam trailers provide a very effective tool for airport fuel storage and power plant installations. Tempest recommends BIOEX Fluorine-Free Foams
WHY DO YOU NEED FOAM?
Foam is needed for any fire or spill involving flammable or combustible solids or liquids
Water will not float on hydrocarbon products such as gasoline or diesel fuel.
Water used on a fire in a contained area may sink, runoff or overflow.
Foam reduces toxic and flammable vapors given off by fuels.
Unit is to be installed on a double axle trailer.
Heavy duty steel trailer w/steel floor
Trailer to be painted red
Plate form trailer dimension to be 11' long x 5' between the fenders
Tandem axles : 7,000 lbs
Electric brake
7 Pins trailer plug
Sealed DOT LED lights
2-5/16" ball attachment assembly
Front jack w/7,000 lbs. capacity
Two (2) rear 5 000 lbs. swivel downrigger stabilizers
Two (2) Steps, one each side, located on the front of each fender

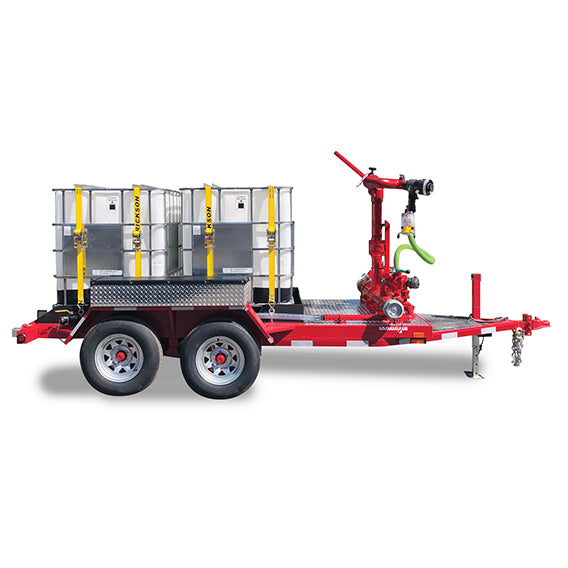

Each Dual-Tote Trailer includes
DOT Striping
Compatible with 2-265-gallon foam totes
Foam Piping
1-1/2" stainless steel rigid tubing from the totes to the front of the trailer.
1-1/2" connector pipes with a flexible hose and a 2" cam-lock fitting for an easy connection.
A 1-1/2" Fire Type quarter turn swing-out valve installed on the front of the stainless steel tube.
One (1) self-educting nozzle - flow rates up to 1000 gpm
4" Water Manifold
The inlet overboard has two (2) 4" Storz connections with cap and chain, one (1) on each end of the manifold.
One (1) 4" pressure gauge tapped into the manifold tube and easily readable from ground.
One (1) 3/8" brass drain tapped into the manifold.
Trailer Mounted Monitor
One (1) monitor installed centered of the water manifold.
The monitor includes a tiller bar control and manual friction brake operation - can travel 360° horizontal and 150° vertical.
3" waterway delivers efficient flows up to 1250 gpm.
One (1) self-educting nozzle designed for educting foam at flow rates up to 1000 gpm installed on the monitor.
The nozzle includes a spring loaded baffle that allow flow setting selection of 350, 500, 750 or 1000 gpm with a simple push and turn of the baffle head.
The nozzle includes an adjustable metering head with pick up rates 1% & 3% plus 6% for 350 & 500 gpm and 1% & 3% for 750 & 1000 gpm.
The monitor gated with a 3" full flow Fire Type quarter turn swing-out valve off the water manifold.
3" stainless steel plumbing
Two (2) hose trays
0.100" bright aluminum diamond plate (dimensions are 48" x 8" x 12",
Each compartment can carry 200' of 1-3/4" hoses.
Secured Compartments installed over the wheel wells, one (1) on the left (driver) side and one (1) right (passenger) side.
