Fixed Automatic And Autonomous Foam Proportioner Leadermix 50 - 275G

Automatic And Autonomous Foam Proportioner Leadermix 50 - 275G "Fixed" LEADER
Automatic And Autonomous Foam-Hose Proportioner Leadermix 50 - 275G "Fixed" LEADER
Automatic And Autonomous Foam-Control Panel Proportioner Leadermix 50 - 275G "Fixed" LEADER

This automatic proportioner allows precise dosing of all types of foam concentrates between 50 and 275 GPM with full autonomy.

  • Autonomous mechanical inductor
    Without electronics, LeaderMIX does not require any power supply to operate.
    LeaderMIX adapts to flow rate variations in a fraction of a second.
  • Range of flow rate: 50-275 GPM
    With a wide flow range (50-275 GPM), LeaderMIX allows variations in flow rates while maintaining a fixed concentration.
  • Automatic Proportioner
    LeaderMIX operates from 75 psi up. It adapts to flow rate variations and does not generate more pressure drop than a conventional venturi.
    Foam concentrate is sucked in instantaneously even during pulsing.
  • Lightweight and compact
    LeaderMIX 275G, in its Fixed version, weighs only 29 lbs. Much more compact than other mechanical inductors on the market, it is easy to integrate into a vehicle or to perform any other installation.
    Its remote control console (optional) allows to position LeaderMIX away from the control station.

Features

  • Automatic And Autonomous Foam-Dosing System Proportioner Leadermix 50 - 275G

product characteristics

LeaderMIX 50-275 allows precise dosing of all types of foam concentrates even during high flow rate variations. Starting at 75 psi, it allows to accurately dose the foam concentrate from 0.3% to 6% over a flow rate range from 50 to 275 GPM. Autonomous, it requires no electrical power and it is practically maintenance-free. Very easy to use, it has a bypass position that reduces pressure drops when the use of additive is not necessary. Via its optional control panel, the functions of LeaderMIX 1000 can be remote

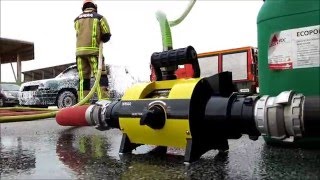

Presentation and installation of the automatic and autonomous foam inductor – LeaderMIX 50-275 Fixed

Discover the fixed version of the automatic and autonomous foam inductor LeaderMIX 50-275 and its operation with several nozzles.



Data Sheet

GENERAL CHARACTERISTICS

FLOW RATE 50 to 275 gpm
OPERATING PRESSURE 75 to 230 psi  (5 to 16 bar)
DOSAGE 0.3%, 0.5%, 1%, 3%, 6%
INLET / OUTLET 2.5’’ BSP female
STORAGE TEMPERATURE -4°F to +140°F
OPERATING TEMPERATURE 32°F to +122°F
PRESSURE LOSS 35%
BYPASS TO REDUCE PRESSURE LOSSES Yes
INLET PRESSURE GAUGE no (but package available)
WEIGHT 29 lbs without extraction tube for the mobile version
DIMENSIONS W X D X P 19.1 x 8.5 x 10.8’’ for the mobile version
CARRYING CASE No for the mobile version
EXTRACTION TUBE No
FOAM SUPPLY 1’’
CHECK VALVE ON THE FOAM INLET Yes
PURGE BUTTON No
OPTION Remote control console

Downloads

Cutsheet PDF Product Manual PDF
